RO machine 2 (RO water purifier)

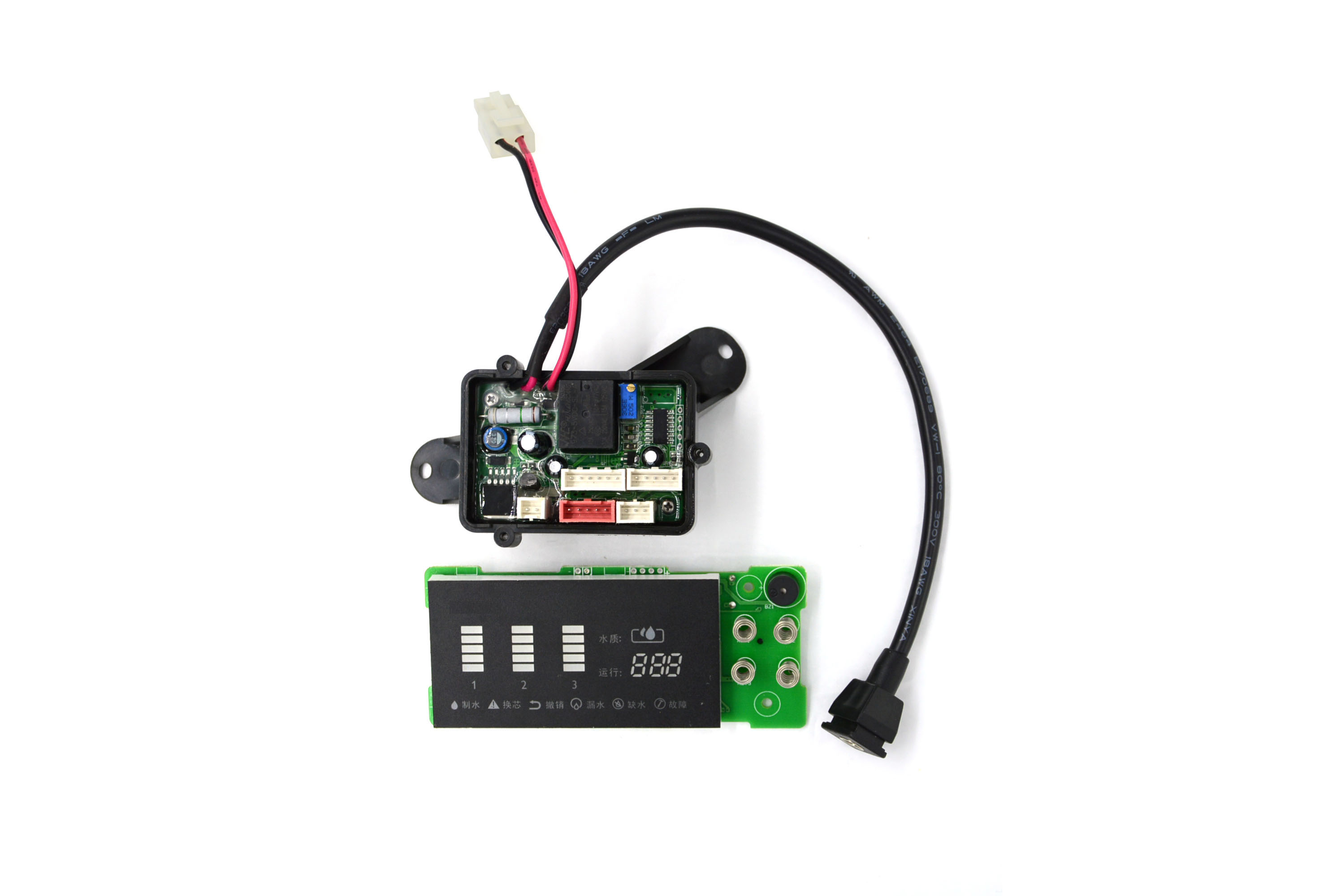

Product features: the controller adopts electronic technology to display the product operation status of RO machine and prompt the service life of filter element. Digital color screen and capacitive touch button are adopted; The IC is equipped with a power-off nonvolatile memory, which can store key parameters without loss in case of power failure. Theoretically, it can be stored for 4 years. After power on, the display will be fully displayed for 5 seconds, and then enter the normal display state, and the display will always be on. The service life status of filter elements at all levels is displayed in the form of scale bars. Each scale is defined as level 1, level 2 and level 3. When one scale is displayed, the scale is indicated in red; When 5% ≤ remaining life
Detail
Function Description:
1. Reminder of filter element life: the internal intelligent IC automatically collects the water volume and running time of each level of filter element to determine the service condition of filter element;
2. Automatic memory function: save the key parameters of flow and time without loss in case of power failure;
3. Fault prompt function: detect various states during product operation, put forward faults and take corresponding protection measures in case of abnormalities;
4. Collect pure water TDS and display the TDS status of water quality by icon, which is divided into three levels: excellent, good and poor; Excellent water quality: the icon displays green; Good water quality: the icon displays orange; Poor water quality: the icon displays red.
Technical arameters:
1. Rated power: 80W
2. Rated voltage: 24VDC
3. Standby power consumption: < 0.5W
4. TDS accuracy requirements:
TDS interval 0-50ppm, tolerance 3ppm;
TDS interval 51-90ppm, tolerance 5ppm;
DS interval above 91ppm, tolerance 10ppm
