Electronic barbecue machine

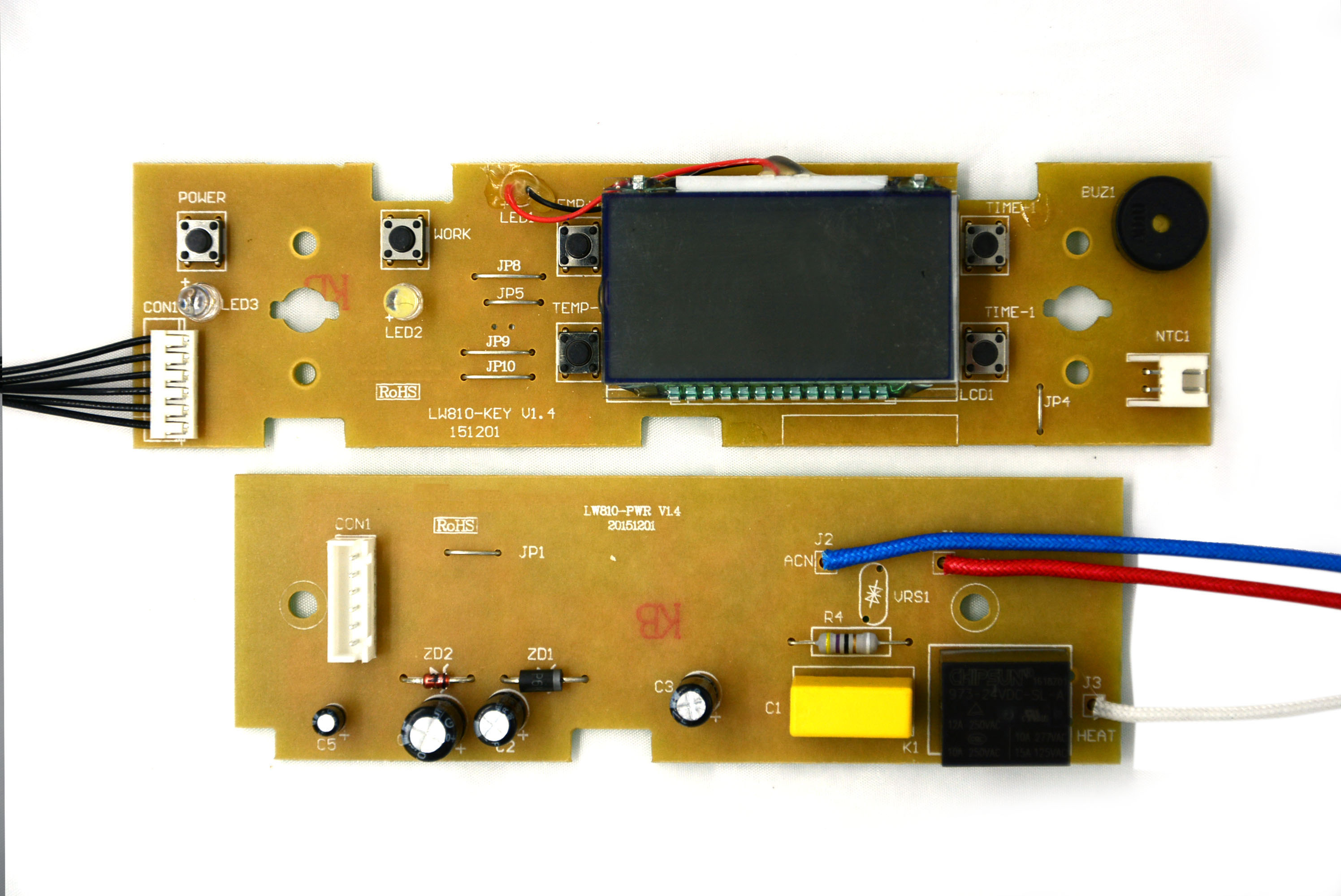

Product features: 1. This product has six keys and a LCD screen. There are lights under the two keys on the left. The backlight of the power key is red, the backlight of the time adjustment key is white, and the keys for temperature and time adjustment have no backlight; 2. The initial set temperature of the display screen is 150 ℃. Each time you press the "+" sign, you will increase 10 ℃ to 230 ℃, and then press the "+" sign to start from 150, and the reverse is the same; 3. If the temperature sensing element is open, the electric heating tube is disconnected after heating for 10 seconds, the power indicator is white and flashes quickly, all keys fail, and the LCD displays "err 01"; 4. If the temperature sensing element is short circuited, the electric heating tube is disconnected after heating for 10 seconds, the power indicator is white and flashes quickly, all keys fail, and the LCD displays "err"
Detail
Function Description:
1. Press the power button once to start up, and press once after starting up to shut down;
2. After startup, touch the temperature "adjustment key +" to increase the temperature control temperature of the barbecue machine, touch the temperature "adjustment key -" to reduce the temperature control temperature, and the temperature adjustment range is 150 ℃ ~ 230 ℃;
3. Tap the time "adjustment key +" to increase the timing time. Tap the time "adjustment key -" to reduce the timing time. The timing range is 0 ~ 30 minutes;
4. Liquid crystal display shall be ed for temperature, time and other information.
Technical parameters:
1. Rated power: 1800W
2. Rated voltage: 230ac / 50Hz
3. Standby power consumption: < 0.5W
