Quick heating water dispenser

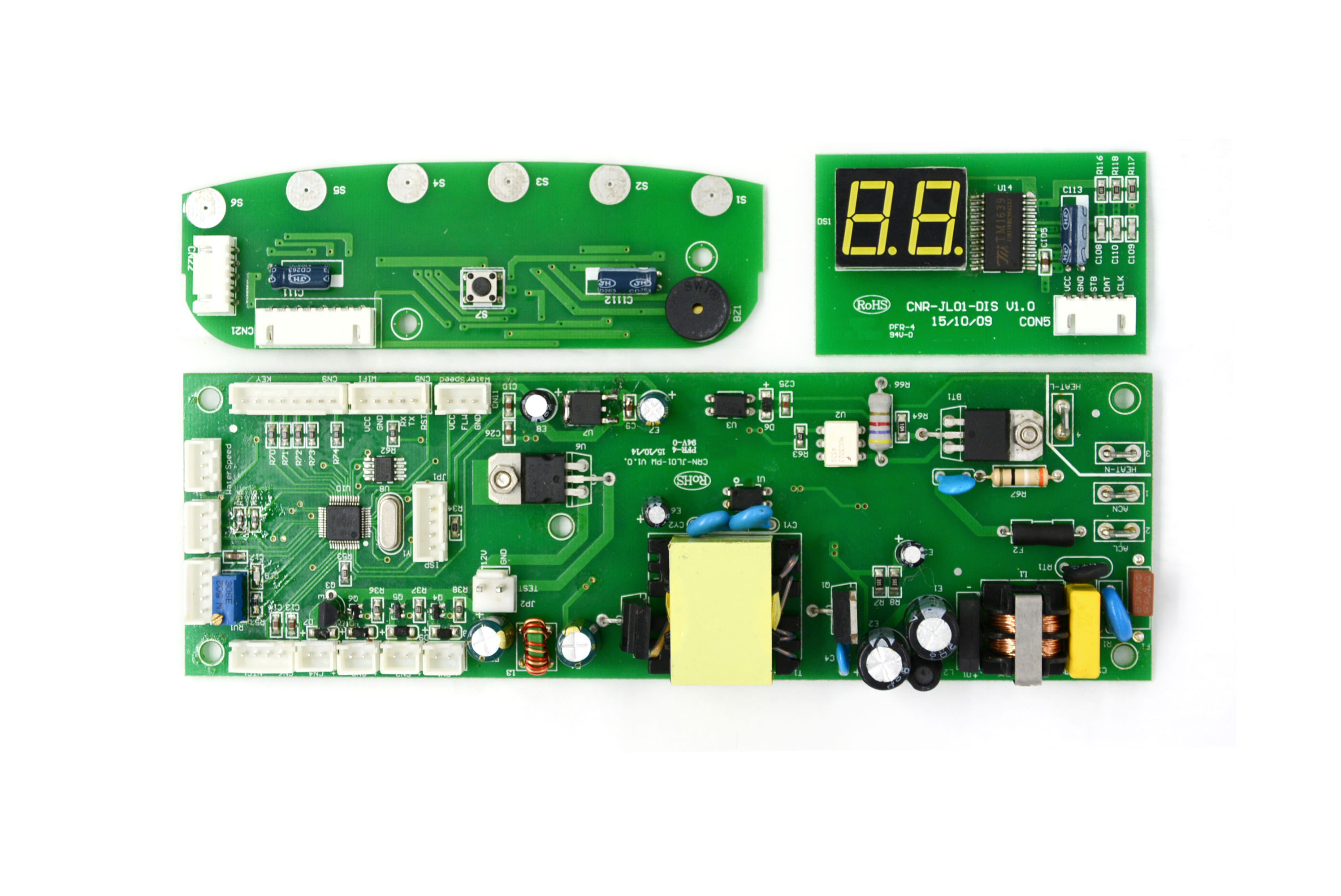

Product features: the main control board of this intelligent water dispenser detects relevant sensor signals, and if there is no fault and the user has water outlet operation, turn on the heating function; When the user takes water, first determine the outlet water temperature sensor. If the water temperature is inconsistent with the user's water intake temperature, open the return solenoid valve and guide the water into the water tank until the water level reaches the user's set value, close the outlet solenoid valve; Two probes are placed at the outlet of the heating wire to detect whether there is water in the heating wire. It can be heated only when there is water. When the probe temperature exceeds 120 ℃, switch heating. When the fault code is reminded, clear the fault and power on again. The product also has WiFi function, which sends the relevant information on the product to the server. Each time the relevant information of the product changes, the information must be sent to the server, such as TDS
Detail
Function Description:
1. Instantaneous heating system function (pipeline water supply);
2. The utility model can provide cup water and tap water, wherein the cup water is water with various water temperatures;
3. Reminder of filter element life: use time counting or calculate flow through TDS value to determine the service condition of filter element;
4. Automatic memory function: save key parameters without loss in case of power failure and permanent memory;
5. When the high water level sensor cannot detect the water level signal, open the water inlet solenoid valve to make up water;
6. Manually open the tap valve, the flowmeter starts to output square wave signal, and the main control board detects the square wave and converts it into flow value.
Technical parameters:
1. Rated power: 2000W
2. Rated voltage: 222vac / 50Hz
3. Standby power consumption: < 0.5W
4. TDS accuracy requirements (within the range of water temperature 5-35 ℃):
The TDS value is in the range of 0-50ppm, and the accuracy is ± 5ppm;
The TDS value is in the range of 51-100ppm, and the accuracy is ± 10ppm;
TDS value is in the range of 101-300ppm, and the accuracy is ± 20ppm;
The TDS value is in the range of 301-500ppm, and the accuracy is ± 50ppm;
The TDS value is in the range of 501-999ppm, and the accuracy is ± 100ppm
