Electric iron 5

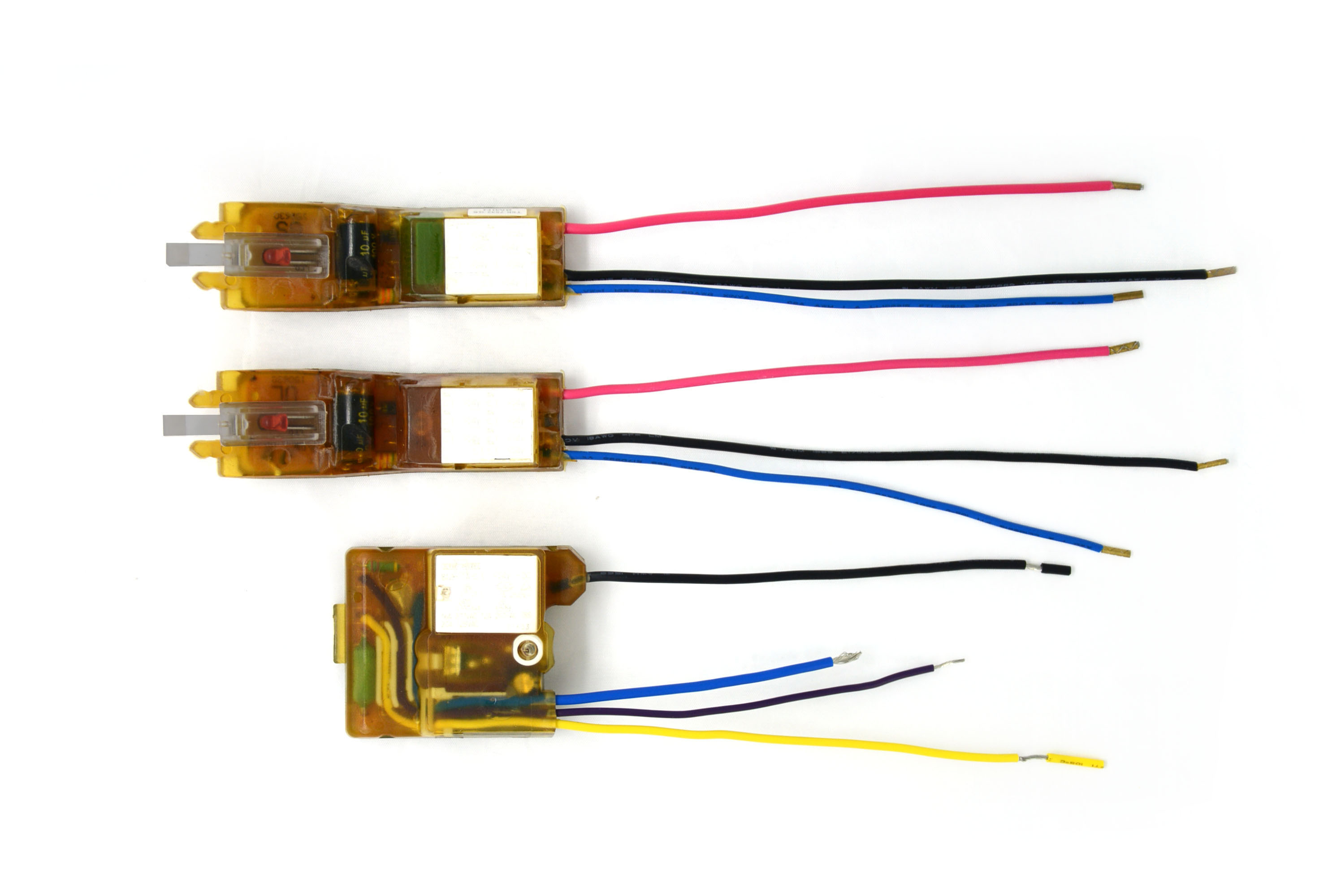

Product features: automatic power-off control of electric iron. The control board is installed on the handle. The board adopts low-pressure glue injection mode, and the LED light is led out by light guide column. In this way, the control board is safe, there is no risk of electric shock, and the moisture resistance is good.
Detail
Function Description:
Power supply: GS specification: resistance capacitance step-down scheme; UL specification: resistance step-down scheme
Display: monochrome LED light display (the LED light is always on during timing, and flashes at 1Hz after automatic power failure)
Sound: None
Timing: put it horizontally for 30 seconds and vertically for 8 minutes, and power off automatically
Other technologies: GS specification standby power consumption < 0.5W
Technical parameters:
GS specification: 220VAC / 230VAC, 50Hz, the passing current of electric iron bottom plate is less than 10A
UL specification: 120VAC, 60Hz, the passing current of electric iron bottom plate is less than 15A
